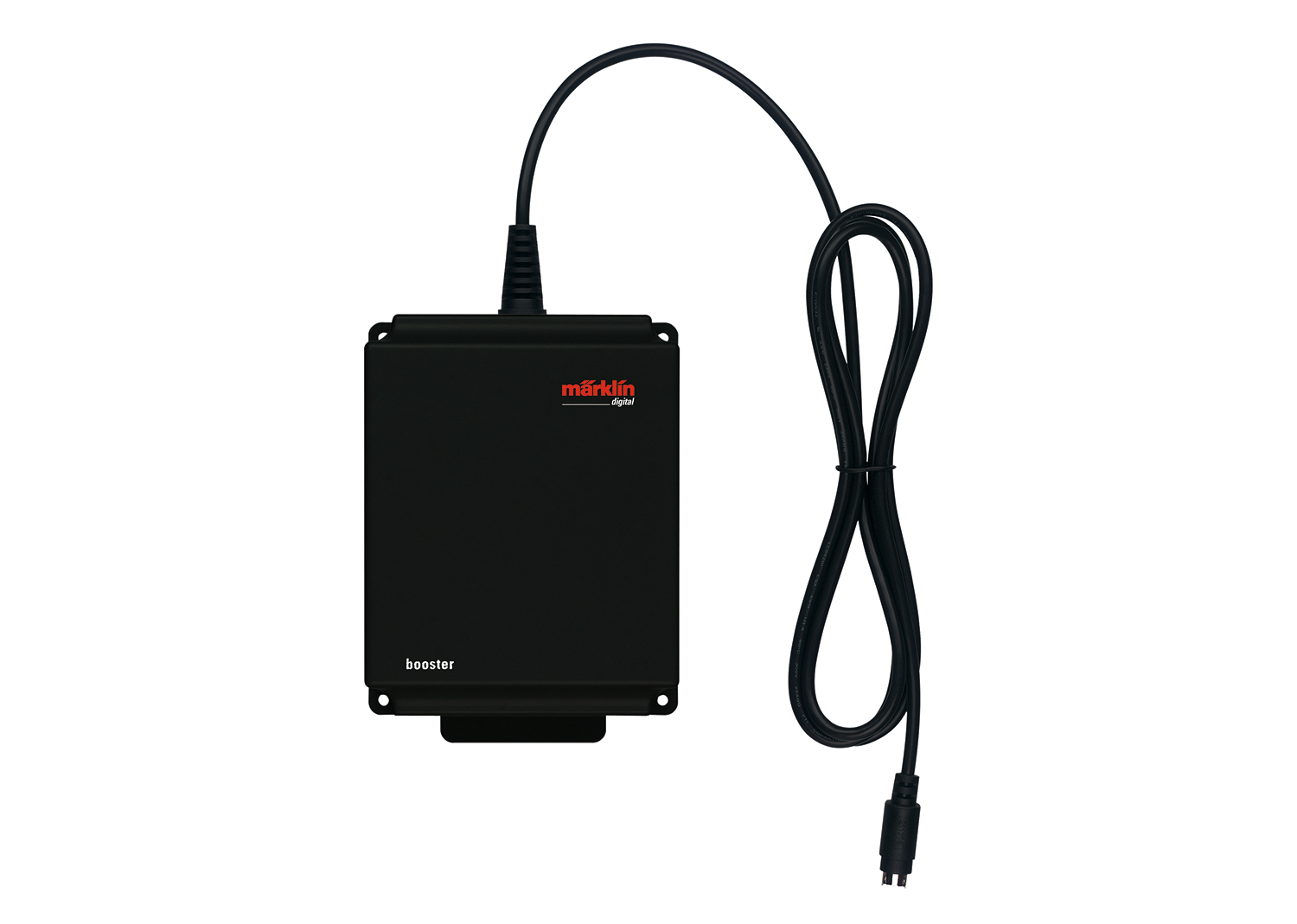

Performance booster for large digitally controlled layouts. This unit is multiprotocol capable in conjunction with the 60216, 60226, and 60213-60215 Central Station. Connections including automatic registration are made by means of a 7-conductor data bus line directly to the 60213-60215 Central Station. Several Boosters can be used in a system by means of the 60125 Terminal. The Booster automatically registers itself in the 60216, 60226, and 60213-60215 Central Station. The status display is done with an LED on the Booster and is shown graphically in the display window for the Central Station.

When using the 60041/60042/60043/60045 switched mode power packs there is a maximum power output of 58 VA and a maximum current of 3 amps (with 60216, 60226 or 602150 and with the 60101 switched mode power pack there is a maximum current output of 5 amps, recommended only for 1 and G Gauge.

Please note that the wire size must be 0.5 square millimeters / 0.0008 square inches or 20 gauge or larger!).

Dimensions 150 mm x 110 mm x 42 mm / 5-7/8" x 4-5/16" x 1-5/8".
