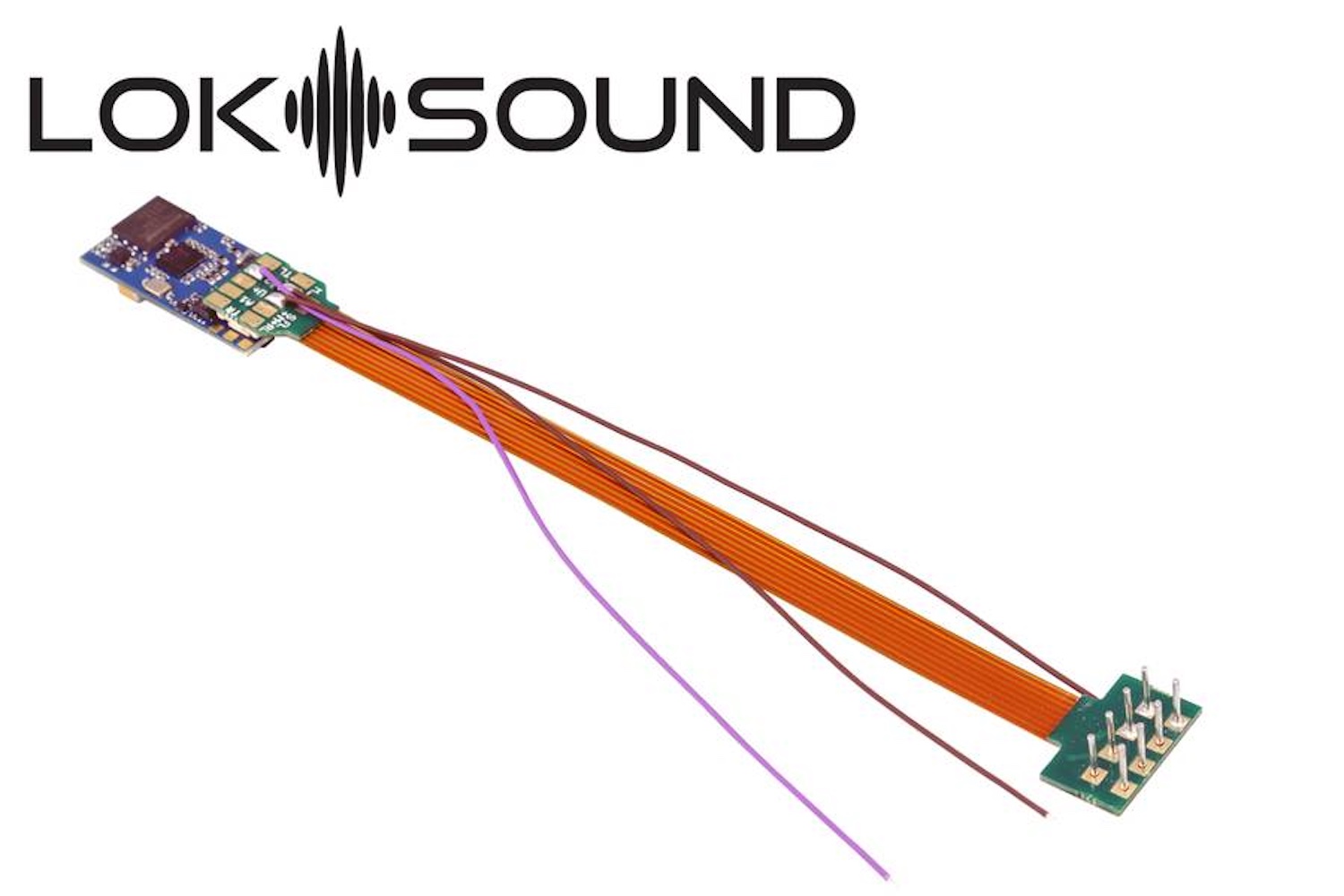

ESU LokSound 58410 is an important model in the LokSound 5 range, featuring a 8-Pin interface. It combines precise motor control with a high-fidelity sound module on a compact 30 x 15.5 mm board—small enough to fit almost any H0 or 0 gauge locomotive. The decoder includes an 11 x 15 mm sugar cube speaker with enclosure, pre-wired with a thin lead for easy installation.

Locomotives fitted with the ESU LokSound 58410 operate on both digital and analogue AC (3-rail) and DC (2-rail) layouts, with multi-protocol support for M4 (Märklin® mfx), DCC, Motorola®, and Selectrix®. The decoder supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format. The M4 protocol supports the automatic registration on mfx® compatible digital control stations such as Marklin Central Station CS3/CS3+, CS2 and Mobile Station. LokSound 5 decoder supports the Marklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible.

ESU LokSound decoders deliver realistic sound, smooth performance, and flexible function control, making them ideal for upgrading models with authentic lighting, sound, and operational effects.

Key Features:

• Operates under DCC with RailComPlus®, M4, Motorola®, and Selectrix®
• 32 switchable functions (depending on controller)
• Digital Class “D” amplifier with up to 3 W output
• 16-bit resolution per channel, 31,250 kHz sample rate
• 128 Mbit sound memory
• Motor control with 50 kHz clock frequency
• Supports RC servos and SUSI modules
• Three individually adjustable braking controllers
• Two-stage heavy load simulation
• Firmware updateable with ESU LokProgrammer
• Motor current: 1.5 A
• Up to 12 amplified function outputs (total up to 15, depending on interface)

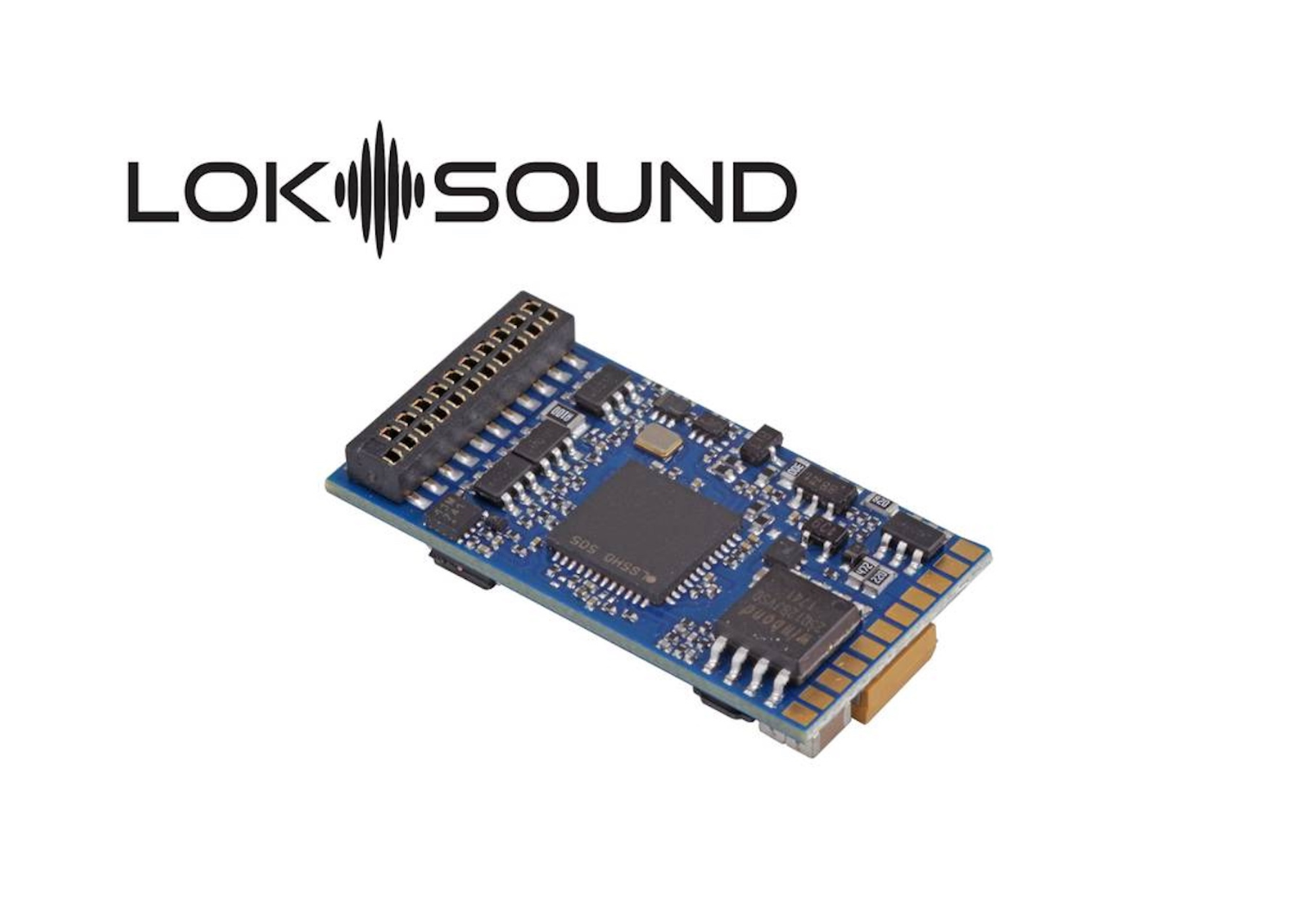

• PluX22 and 21MTC interfaces have an additional 4 outputs for controlling servos or logic outputs
• Plays up to 10 sound channels simultaneously
• Optional PowerPack energy storage connection
